Pneumatic air cylinders are indispensable power components in modern industrial automation. By converting the energy of compressed air into mechanical motion, they enable pushing, pulling, clamping, and positioning functions. Whether in automotive manufacturing, packaging lines, or robotic operations, pneumatic air cylinder play a crucial role. As a professional pneumatic air cylinder supplier, we understand the high demands our customers place on product performance and suitability. Today, let’s explore the common types of pneumatic air cylinders and their application scenarios to help you choose the ideal cylinder solution for your business.

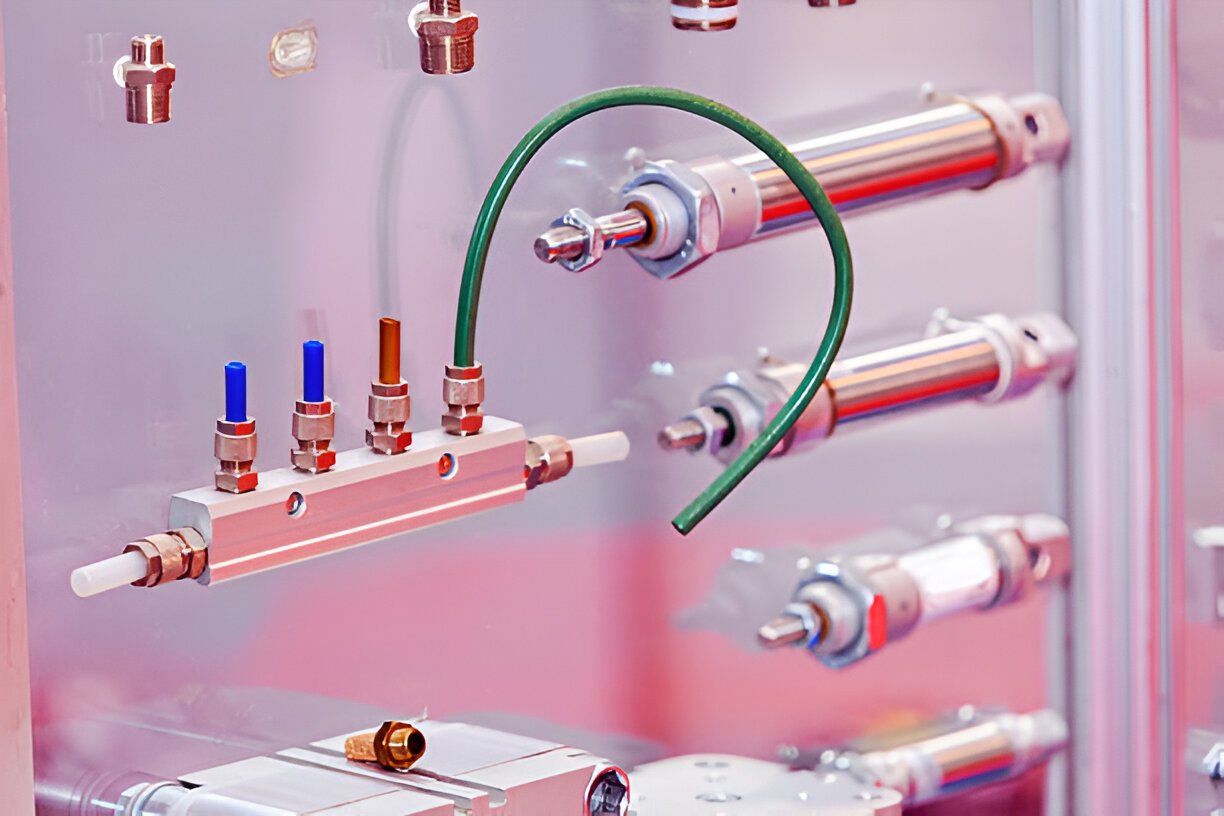

Main Types of Pneumatic Air Cylinders
There are many types of pneumatic air cylinders, each designed to meet different industrial needs. Understanding their features will help you match them precisely to your application.
1. Single-Acting Pneumatic Cylinder
A single-acting pneumatic cylinder uses compressed air to move the piston in one direction, while a spring or external force returns it in the other direction. Its structure is simple and cost-effective, making it suitable for applications requiring only one-way movement.
- Advantages: Simple structure, lower air consumption, easy maintenance
- Applications: Clamping devices, light lifting, simple pushing actions
2. Double-Acting Pneumatic Cylinder
A double-acting pneumatic cylinder uses compressed air to move the piston rod in both directions, offering more flexible and unlimited stroke movement.
- Advantages: Powerful, stable operation, suitable for high-frequency cycles
- Applications: Automated assembly lines, robotic joints, packaging machinery
3. Rodless Pneumatic Cylinder
Rodless pneumatic cylinders do not have a traditional piston rod. The load is directly connected to the piston, making them ideal for long strokes in limited spaces.
- Advantages: Space-saving, prevents piston rod bending, balanced force in both directions
- Applications: Material handling, conveyor systems, cutting equipment
4. Compact Pneumatic Cylinder
Compact pneumatic cylinders are small in size, perfect for installations where space is limited. They are commonly used in robotics and precision automation equipment.
- Advantages: Lightweight design, easy integration
- Applications: Electronics assembly, automatic inspection equipment
5. Mini Pneumatic Cylinder
Mini pneumatic cylinders are even smaller and are suitable for precision operations and miniature devices.
- Advantages: High precision, fast response
- Applications: Medical equipment, miniature robotic arms
6. Guided Pneumatic Cylinder
Guided pneumatic cylinders are equipped with guide rods to prevent piston rod bending or twisting, making them suitable for heavy-duty applications that require side-load resistance.
- Advantages: High stability, ideal for handling and positioning
- Applications: Heavy-duty assembly lines, handling machinery
7. Telescoping Pneumatic Cylinder
Telescoping pneumatic cylinders consist of multiple stages, allowing for long strokes in limited spaces.
- Advantages: Saves installation space, flexible stroke length
- Applications: Lifting platforms, telescopic robotic arms
Typical Application Scenarios for Pneumatic Air Cylinders
Thanks to their efficiency, cost-effectiveness, and easy maintenance, pneumatic air cylinders are widely used across various industries.
1. Automated Production Lines
On assembly lines, pneumatic air cylinders handle tasks such as material handling, assembly, and inspection, improving productivity and ensuring product quality.
2. Robotics and Automation Equipment
Robotic joints often use double-acting or guided cylinders for precise positioning and high-speed movement.
3. Packaging and Sorting Systems
Pneumatic air cylinders control the conveying and pressing of packaging materials, ensuring a smooth and stable packaging process.
4. Medical Equipment
In medical automation devices, mini cylinders are used in surgical robots and for precision positioning, ensuring safety and accuracy.
5. Automotive Manufacturing and Assembly
Automotive production lines extensively use pneumatic air cylinders for positioning, clamping, and moving parts, speeding up assembly.
6. Other Industries
Industries such as food processing, printing, and textiles also rely on pneumatic air cylinders for clamping, cutting, and tensioning operations.
How to Select the Right Pneumatic Air Cylinder
When choosing a pneumatic air cylinder, consider the following factors:
| Selection Factor | Description |
|---|---|
| Load Capacity | The cylinder’s thrust should be at least twice the load for stability |
| Stroke Length | Choose the stroke length according to actual movement requirements |
| Installation | Select a mounting structure that matches your equipment |
| Working Environment | Consider temperature, humidity, and corrosive factors when choosing materials and seals |
| Speed Requirements | Consider the maximum travel speed and match the valve’s flow rate |
| Air Consumption | Evaluate air consumption to ensure a stable air supply |
Choosing the right model can improve equipment efficiency and reduce energy and maintenance costs. If you need professional advice, feel free to contact us. We’ll recommend the most suitable pneumatic air cylinder products based on your specific needs.
Advantages and Maintenance Tips for Pneumatic Air Cylinders
Advantages
- Efficient and Energy-Saving: Powered by compressed air, low energy consumption, and environmentally friendly
- Simple Structure: Easy to install and maintain, reducing equipment downtime
- Quick Response: Suitable for high-speed, frequent automation actions
- Strong Adaptability: Various specifications and types meet different industrial needs
Maintenance Tips
To extend the service life of your pneumatic air cylinder, we recommend regular maintenance:
- Check for Air Leaks: Regularly inspect seals and connections to prevent air leakage
- Lubrication: Lubricate the piston rod and seals as recommended by the manufacturer
- Clean the Filtration System: Keep the air clean to prevent debris from entering the cylinder
- Monitor Operation: Observe if the cylinder operates smoothly and address abnormal noises or sticking promptly
- Replace Worn Parts: Such as seals and cushions, to prevent equipment damage
If you encounter issues like sluggish movement, insufficient force, or air leaks, perform timely repairs or part replacements to avoid production delays.
As the “muscle” of industrial automation, pneumatic cylinder provide reliable and efficient power support across industries. Whether you need single-acting cylinders for simple pushing, double-acting cylinders for precise control, or compact designs for limited spaces, choosing the right pneumatic air cylinder can significantly enhance your equipment’s performance and productivity.
If you are looking for high-quality pneumatic air cylinder suppliers, visit our website or contact us sales team directly. Our professional technical support and customized services will help you tackle any industrial automation challenge with ease. Let’s work together to create a more efficient and intelligent future!
